Quilt Class: Cathedral Window Block

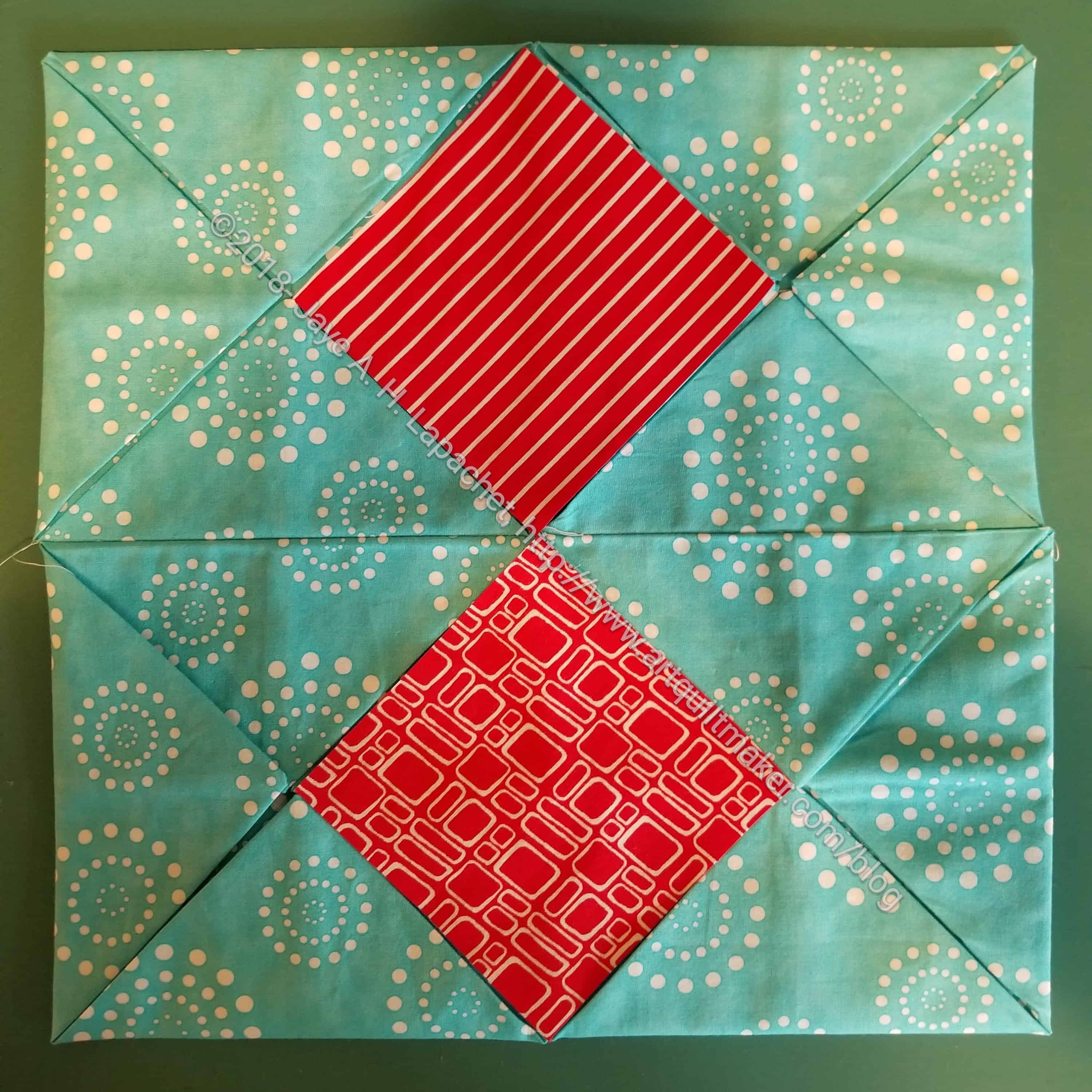

Finished Cathedral Window block
Finished Cathedral Window block

I decided to make this block after finding I needed one more block to complete my Aqua-Red Sampler. I have never made one of these, so I thought “what the heck?”. I had seen some directions for it and it caught my attention. As mentioned, I had to cobble together instructions from at least three different tutorials to be able to make the block. Below is my version. The tutorials I referenced are noted below.

Finished Block Size: 12 inches (12.5 unfinished)

Supplies

  • Fabric
    • In this tutorial, the background is turquoise and the foreground is red.
  • Thread – you might want to use your regular piecing thread for the first part of the directions, then switch to a thread that matches the background fabric for sewing the curves shut
  • Seam ripper (I use a Clover ergonomic seam ripper)
  • Sewing machine
  • 1/4 inch foot
  • applique’ foot (foot with a center mark)
  • square ruler at least 12.5 inches square
  • long ruler at least 12 inches long (I use a 3.5 x 12.5 Creative Grids)
  • snips or scissors
  • Pins
  • Iron
  • Ironing surface
  • Tool to poke out corners
  • A pen or pencil you can use to draw on fabric (I like Sewline pencils)
  • Stiletto or dental pick type instrument (something thin and pointy)
  • hand sewing needle

Instructions for making a 12″ (finished) Cathedral Windows block

1. Cut 4 squares of background fabric 12.5 inches by 12.5 inches

4- 4 x 4 inch foreground squares
4- 4 x 4 inch foreground squares

2. Cut 4 squares for inset pieces 4 inches by 4 inches.

Fold 12.5x12.5 inch squares in half
Fold 12.5×12.5 inch squares in half

3. Fold each of the 4 background squares in half. This will make your 12.5 x 12.5 inch squares into rectangles (e.g. do not fold NOT along the diagonal).

  • Hint: I sew all four one after another, but you can sew one at a time, if you prefer.

3A. Sew along the short side, backstitching at the beginning and the end.

Open up rectangles & match edges
Open up rectangles & match edges

4. Open your rectangles and match up the raw edges.

Match edges and nest seams
Match edges and nest seams
  • Hint: I nest the center seams and pin, starting in the middle
Leave opening
Leave opening
Pin edges closed, leaving an opening for turning
Pin edges closed, leaving an opening for turning
  • Hint: leave an opening 2-3 fingers wide for later turning.  I mark this with two pins right next to each other.
Sew seam shut
Sew seam shut

5. Sew your pinned seam shut except for the opening you have left.

Backstitch at beginning and end
Backstitch at beginning and end
Backstitch at beginning and end
Backstitch at beginning and end
  • Hint: I backstitch at the beginning and end of the seams including next to the opening. Yes, it is a hassle to start and stop, but I don’t want the edges of the seams to come apart when I turn.
Smooth out blocks
Smooth out blocks

6. Place recently sewn squares on the ironing board and smooth out wrong side out (above). They should make nice squares.

7. Press nested seams in opposite directions from the center out.

Press seam open to minimize bulk
Press seam open to minimize bulk

8. Press long seams in one direction, being careful to line up edge of opening as best you can.  You can press this seam open if you want.

You should now have 4 nice flat squares with wrong sides out.

9. Turn squares right sides out.

10 Poke out corners carefully. I use a knitting needle whose mate broke.

Your squares are now on the bias, so be careful when you handle them.

Press right side
Press right side

10A. Press

Press
Press



Corners folded in
Corners folded in

11. Fold corners into the center. Do this with all four corners and make a new square. The square should be 6 inches.

4 blocks laid out in a 2x2 grid
4 blocks laid out in a 2×2 grid

12. Lay out the blocks in a 2 x 2 grid, so you can see what you have

Pin triangles together
Pin triangles together

13. Pin the center triangles of the two top triangles together. Do the same for the bottom triangles. Now your 2×2 grid will be pinned together in two rectangular sections

Draw a line in the crease
Draw a line in the crease

14. Using a ruler (I use a 3.5 x 12.5 Creative Grids), and your marking implement (I like Sewline pencils), draw a line in the crease under the triangles you are about to pin

Line up squares
Line up squares

15. Line up squares with backs together and triangles pointing to the right.

16. Put your applique’ foot on your sewing machine.

17. Sew along the crease on both sets.

18. Lay out the 2×2 grid again. Now you will have two ‘rows’. You are going to sew the rows together.

Pin them together
Pin them together

19. Fold up the top triangles from the bottom row and the bottom triangle from the top row.

Draw another line between the two 'rows' in the crease
Draw another line between the two ‘rows’ in the crease

20. Draw a line along the crease at the bottom of the two triangles.



21. Sew along the line. After, you will have your 2×2 grid of squares sewn together and the triangles will be flapping around.

Start laying out your foreground squares
Start laying out your foreground squares
Foreground squares laid out
Foreground squares laid out

22. Take your foreground triangles and lay them on top of your background

Tuck flaps over foreground
Tuck flaps over foreground

23. Tuck the flaps in towards the center and pin in place. Watch out that the edges of your foreground squares don’t show. Make the edges curve slightly

  • Note: this was confusing to figure out and it turned out that I did not have all the sewn triangles in the right place. After you sew the triangles together, make sure you flatten them back in their original places, e.g. one layer of background on top
You may need to use a stiletto
You may need to use a stiletto
  • Note: I had to use a thin sharp tool, like a stiletto or dental instrument to tuck in some of the foreground edges. I sometimes use a seam ripper, which is a very bad habit, because if you aren’t careful, you can rip your fabric. You can definitely trim the foreground fabric, but trim a little at a time very, very carefully
Pinned and ready for sewing
Pinned and ready for sewing

24. Pin each edge in three places with the heads of the pins facing the center of the foreground fabric. This is not micro management; this technique will allow you to sew as long as possible with the pins in place

Sew close to the edge of the background fabric
Sew close to the edge of the background fabric

25. Sew very close to the edge of the background. I sewed slowly and carefully. I used the above mentioned sharp tools when I needed a little help. Leave LONG tails so you can knot off and hide the threads

26. Handstitch the other triangle flaps closed with a few stitches. The other tutorials said to use the machine, but 2 stitches is a pain and an irritant on the machine, so I hand sewed the flaps closed when I was sinking threads.

Cathedral Window Block in process
Cathedral Window Block in process

I never thought of making it before, but this block did kind of take my fancy. This is kind of a strange block, partially because of all of the layers. It is lumpier than I expected. Warn your longarmer about it.





Resources:

  • Fons & Porter Cathedral Window block– I originally found the instructions in one of their magazines as part of their ‘learning to quilt* series’. I had to go looking for other instructions when I found the directions had no sizes or actual cutting instructions. Directions are brief.
  • Lovely Little Handmades Cathedral Window block – uses a printed background, so you can see how that works. Most people use white, so it was a little confusing for me when I wanted to use the blue.
  • Sometimes Crafter Cathedral Window block – some missing detail, but has the instructions for cutting the right sized patches. I also don’t like it that the viewer cannot enlarge the photos to see the details.















*Nota bene: not sure if this is the correct name, but it describes the basic idea of the series.
