Quilt Class: LeMoyne Star

Finished LeMoyne Star
Finished LeMoyne Star

Today we will work through the tutorial on making a LeMoyne Star. This block is also called an Eight Pointed Star. In this class, you will learn to use Y Seams.Y Seams are not difficult. The key is to mark and sew slowly.

The method described below is one of the methods I use to make it and I will walk you through making a successful block. There are many methods and I encourage you to try different techniques.

Alex Anderson has a great tutorial on one of the Quilt Show episodes on making a Split LeMoyne Star.

Before you do anything else, print the rotary cutting instructions below (first item under supplies). All the sizes, shapes, etc are there.

Supplies:

  • 8 Pointed Star Rotary Cutting Directions
  • 4.5″x 12.5″ Creative Grids ruler
  • 4.5 x8.5″ Creative Grids ruler
  • Jinny Beyer Perfect Piecer ruler
  • Optional: Mary Ellen’s Best Press or similar
  • Optional: stiletto
  • fabric marking implement (pencil, Sewline, Pilot SCUF, Pigma Micron, mechanical pencil, etc)
  • rotary cutter
  • mat
  • sewing machine
  • thread
  • iron
  • ironing board
  • 3 fabrics (I will name them A, B, C)
    • 3″x23″ strip of fabric A for 4 diamonds
    • 3″x23″ strip of fabric B for 4 diamonds
    • 1 fat quarter for the background (fabric C)

Important information:

  • Block is 12.5″ unfinished and 12″ finished
  • These directions use a quarter inch seam allowance.
  • You will be creating Y seams.
  • Chain piecing is not part of this tutorial.
  • Respect the bias.
  • Do not sew into the seam allowance.

Cutting

Line Up Ruler to Cut 1 Side of Diamond
Line Up Ruler to Cut 1 Side of Diamond

Cut a 3″x 23″ strips. That should be long enough for 4 diamonds (parallelograms). Cutting a 3″ strip across the width of a half yard of fabric (3″ x ~40″) will generate a strip that is long enough. You will need two of these strips. Using 2 different fabrics looks good.

As shown (above), line your ruler up so the 45 degree angle on your ruler is along the bottom of the strip.The side of the ruler should be lined up right in the corner of your strip.

The idea is to cut off the end of the strip, so you have the correct angle of one of the pointy ends of the diamond. I did try my diamond ruler, but none of the lines were quite the right size, so I couldn’t use it for this particular block.

Line Up Rulers to Cut the Second End
Line Up Rulers to Cut the Second End

I used the two rulers to make sure that the diamond were accurate. The first ruler, on the left, should be even with the far left diamond point so that it measures 4.25″ along the bottom edge. I used that measurement to line up the 45 degree angle of the second ruler so I could cut the angle in the right place. I butted the second ruler up against the first ruler (carefully) so everything was in alignment. The second ruler (on the right) must have a 45 degree angle that intersects with a corner or this method won’t work.

I removed the left ruler before I started cutting, as it was easier to cut with just one ruler on the mat. I was careful not to jostle the ruler in the 45 degree angle position. Line your ruler up exactly as shown in the photo. You don’t have to have exactly the rulers I have. You can use any rulers with the correct lines.

Cut 2d End of Diamond
Cut 2d End of Diamond

I found that the method really does work. You will need to repeat the step above 8 times to get 8 diamonds. After the first diamond, it will be easier, since you can use the 2d cut for each diamond as the first cut for the next diamond.

Aside from having to watch out for ruler jostling, I was really pleased with how easy this was and well these diamonds came out. Don’t get me wrong, I wouldn’t have wanted to cut the 300+ diamonds for FOTY 2010 using this method, but for a LeMoyne Star, it works very well.

I cut all the diamonds at once from two strips of two different fabrics. My fabrics are:

  • background: Lil Plain Jane
  • red diamonds: Moda Bliss #55021
  • aqua dot diamonds: Moda Bliss #55023

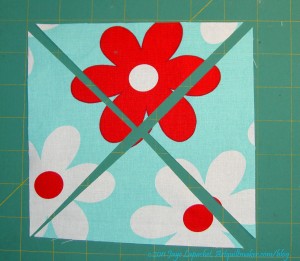

Side Triangles
Side Triangles

Cut the squares and triangles according to the cutting directions on the PDF in the supply list. The triangles are quarter square triangles, which means that you cut the triangles so the straight of the grain will be along the hypotenuse (the long side of the traingle).

If you have some reason for not being able to cut the side triangles as shown, be careful while sewing the block together and then stay stitch the outside of the block once you are finished.

Pieces cut
Pieces cut

Once your pieces are cut, lay them out or adhere them to your design surface, so you know what you have.

Cut Diamond, Face down
Cut Diamond, Face down

I like to keep them where I can see them because it helps me to know where I am. As I sew, I put the sewn elements of the block back up on the design wall.

Once you have cut all the diamonds, you will need to mark them. You need to mark 1/4″ away from the seam line, because if you want this block to come out right, you cannot sew into the seam allowance. The biggest rule I have for making the LeMoyne/8 pointed star block is NOT to sew into the seam allowance. There are exceptions, but I am not going into those now.

Put your diamonds face down on a writing surface and prepare to mark. As you can see from the photo, I used my cutting mat as the hard surface. You can use a table or whatever else works for your work area. I used the Sewline pencil to make the marks. Pilot SCUF pens, a mechanical pencil, etc also work. A regular pencil might not have a sharp enough point to be accurate.

Get ready to mark the seam allowance on all of your pieces (squares, triangles, diamonds).

Mark with Perfect Piecer
Mark with Perfect Piecer

I like using the Perfect Piecer ruler by Jinny Beyer for marking weird angles, because I only have to move the ruler once to mark the ‘corner.’

With the Perfect Piecer (they aren’t giving me free stuff, BTW!), you put the ruler in the ‘corner’ as shown in the photo. Where I have placed the circle is a hole. Note it is a small hole, so a regular No.2 pencil usually won’t work. Stick your Sewline (or other fabric marking implement with a very thin point) in there and make a dot. Voilà!

You will need to use two different parts of

Ruler Angle Does Not Fit Side
Ruler Angle Does Not Fit Side

the Perfect Piecer ruler to make the marks on all four ‘corners’. There is no angle for the sides of the diamonds, so just use the straight edge (as I describe below). You don’t need to know the angles, if angles make you crazy. Just match up the shape of the ruler with your cut piece.

Use Straight Edge for Marking
Use Straight Edge for Marking

You can certainly use any kind of ruler. Take your regular ruler and line up the 1/4″ line with the cut edge. Make a line around where you think the quarter inch would be. Make it longer, so you don’t have to go back and make the line longer. Move the ruler to the opposite cut edge of the diamond and cross your first line with a new line. Make sure your lines make an X. I have done this numerous time and there is no problem using an X instead of the Perfect Piecer dot.

Beautiful marks!
Beautiful marks!

In case you were wondering what the marks look like, the photo (red diamond with blue circles, left) shows examples.

The upper left hand mark inside the blue circle is the mark made with a Perfect Piecer and the Sewline pencil.

The lower right hand mark is made using a regular rotary cutting ruler and the Sewline pencil. Either mark works, as I said. You will use these marks to stop and start your seam lines. NO sewing into the seam allowance!

You will need to mark the squares and the triangles, too. You can use the Perfect Piecer to mark those pieces as well.

At this point, use some Mary Ellen’s Best Press to stiffen your pieces since you will be working with and sewing along a lot of bias edges. You can either spray it on all of your pieces at once, or as you are getting ready to sew. If you don’t want to use Mary Ellen’s Best Press or spray starch, no problem. Just keep in mind that you are working with bias edges and you need to work with them carefully. You don’t need to be afraid of bias edges. Just work slowly and carefully. Respect the Bias! 😉

Position Triangle over Diamond
Position Triangle over Diamond

Sew Segments Together

Now you are ready to sew!

First, position one of your side triangles over the diamond as shown, right sides together. You are lining up the diamond with the left non-hypotenuse side of the side triangle.

Line up the marks you have made on the diamond with the marks you made on the triangles.

I used pins. I stick them through the two marks vertically one time to keep them in place until I get to the sewing machine.

You can give the pieces a little press to stick them together, if you want.

Sew from Mark to Mark
Sew from Mark to Mark

Next sew from mark to mark. Start sewing at one mark and stop at the second mark. Stay out of the seam allowance! You can back stitch, if you want, but stay out of the seam allowance. Easy!

An Aside: You are probably wondering about the lemon fabric. Short answer: ignore the lemon fabric. Long answer: I press fabric on my ironing board and if I am pressing a lot of pieces, then I will put a larger piece of fabric so that I can get more bang for my buck. As I press the smaller pieces the larger piece gets pressed as well.

Press Carefully
Press Carefully

You can press now. If you do, press carefully (remember the bias, respect the bias) towards the diamond. If you don’t want to press until later, that is ok, too. I usually create the entire segment (2 diamonds, one triangle) before I press.

Now you have your first piece. YAY!

Not hard or scary, right?

Repeat this step for all of the diamonds that will be in the same position as my aqua with white dot diamonds.



2d Diamond with Pieced Segment
2d Diamond with Pieced

The next step is to sew the second diamond on to the segment (above: aqua with white dot & Lil Plain Jane flower fabrics) you have just made. You will be doing an inset seam. An inset seam is also called a Y seam. A lot of people hear Y Seam and panic. Y Seams are not difficult, but you can’t chain piece them and you have to pay attention. This method is similar to sewing hexagons together. Y seams really expand the number of quilt block designs you will be able to make.

As you can see I have lined the red diamond up with the segment I sewed and am ready to line up the pieces, pin and sew.

Line Up 2d Diamond & Pin
Line Up 2d Diamond & Pin

First, line up the marks on the triangle and the diamond.

I used pins to make sure that everything was lined up before I sewed. I placed the pins through the marks on both pieces of fabric vertically. I put a pin in the middle of seam line, once all the pieces were lined up, right before I sewed to hold everything together.

You will be sewing in two stages. I like to sew the triangle to the second diamond before I sew the two diamonds together.



Sew 2d Diamond
Sew 2d Diamond

Next, place the group of 3 patches (2 diamonds and a triangle) under the needle, lining up the marks so that the needle misses the seam allowance and goes straight into the first mark. Only sew through 2 layers of fabric.

Sew from mark to mark. The triangle and the second diamond will now be sewed together.

Sew from Top to Middle
Sew from Top to Middle

Second, line up the new diamond with the diamond you have already sewed to the triangle.

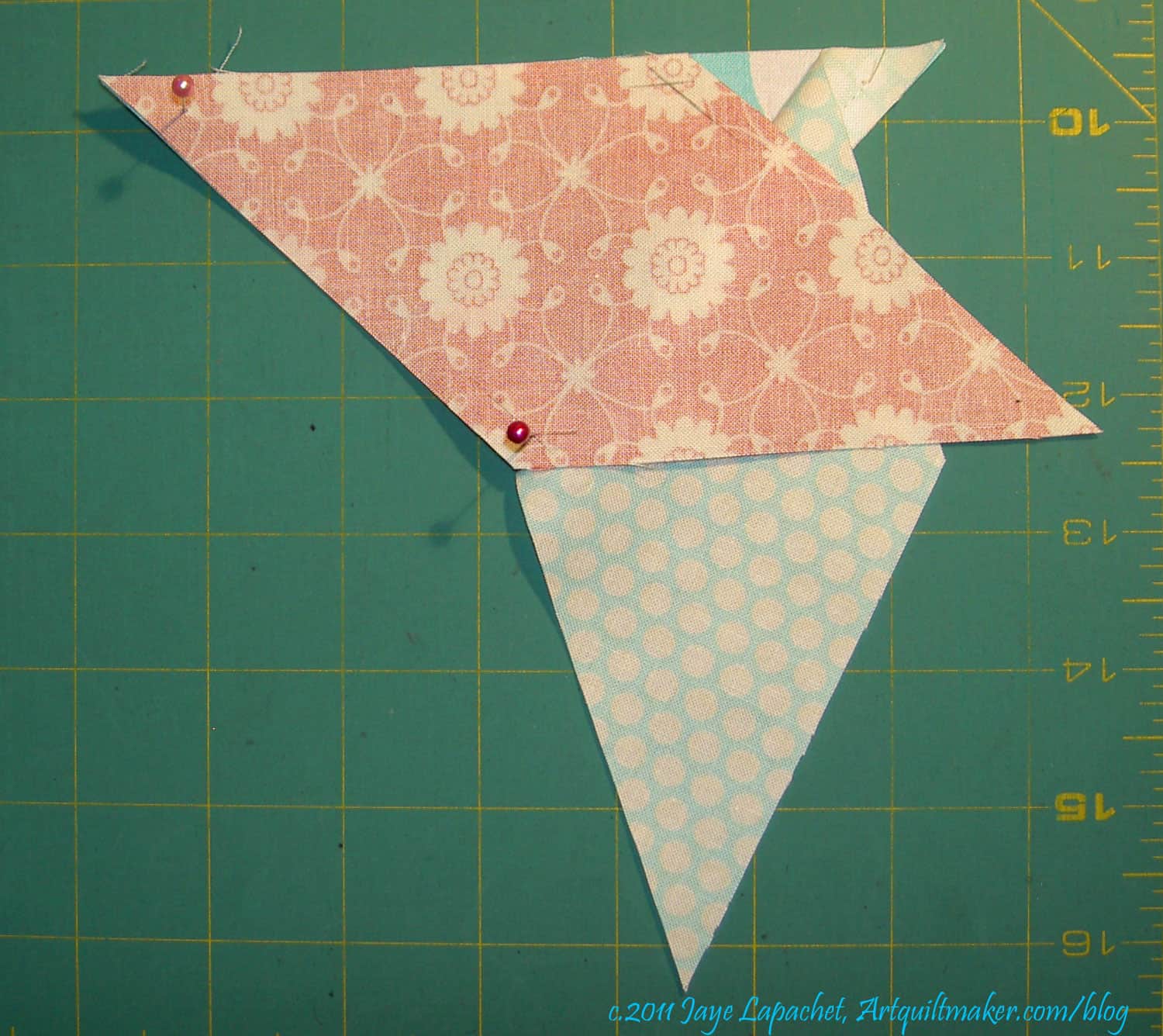

Line Up 2d Diamond & Pin
Line Up 2d Diamond & Pin

Match up the marks on the top and sides of the diamond and pin vertically. Right sides should be together.

Put the top of the 2 diamonds into the machine. You will start sewing at the mark, which is 1/4″ in from the top of the diamond. Sew between the two marks, avoiding the seam allowance. I sew towards the triangle.

Top View of Sewing Mark to Mark
Top View of Sewing Mark to Mark

Sew down to the mark at the bottom of the diamond. If the pressed seam allowance looks like it will go under the needle, move it out of the way with your finger, the tip of some sharp scissors or a stiletto.

Stop at the second mark.

Remove the piece from the machine.



Segment 1 Complete
Segment 1 Complete

Once you have sewed the the three patches together, you will have one full segment completed.

Next, press the 3 seam allowances into a swirl. This is similar to what you did with the hexagon block. As a guide, use the first seam that you pressed after sewing the first diamond to your triangle.

The reason I suggest the ‘Swirl’ is that it reduces bulk later. This particular pressing point isn’t as important in terms of bulk as the center, which has a crazy number of layers, once finished. Consistency is good, though.

Repeat to make four of the above segments.

Sew Quarters into Halves

Segment and Square
Segment and Square
Sew Square to Segment
Sew Square to Segment

Line up the square to the [red] diamond, matching the marks.

Arrange your pieces like I have done.

Line up the marks in the square with the marks on the outside side of the bottom (red in the picture) diamond.

Press, if you like.

Pin, if you like. Go back to the sewing machine and sew from mark to mark.

Repeat this step for all four segments.

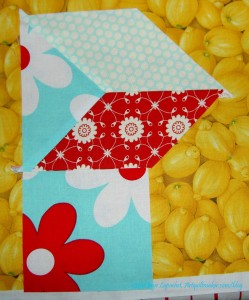

Sew Square to Segment 1
Sew Square to Segment 1

If you just look at the next photo, you might have a heart attack. Please don’t. Adding the square is not hard. The key is to NOT sew into the seam allowance.

Nota bene: You can actually sew into the seam allowance on any seam that will end up on the outside of the block. If this thought is going to make your head explode, then just remember my mantra: don’t sew into the seam allowance and you will be fine.

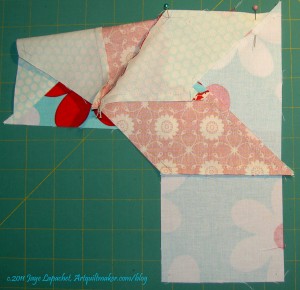

Two Quarters of the Block
Two Quarters of the Block-Once you have two segments sewn to two squares, prepare to sew the two quarters together.



Line up 2 Halves along the Center Diamond
Line up 2 Halves along the Center Diamond



Sew Diamond Only
Sew Diamond Only

Sew the [red] diamond to the aqua diamond on the bottom. Stay out of the seam allowance and sew mark to mark.

Seam Line After Sewing Diamonds
Seam Line After Sewing Diamonds



After Diamonds are Sewn
After Diamonds are Sewn

It looks weird once you have sewn the diamonds together, but it will work out.

Pin vertically as discussed.

Line up Square
Line up Square

Line up the square with the [aqua] diamond and sew from mark to mark.



You Finished Half of Your LeMoyne Star
You Finished Half of Your LeMoyne Star

Two Halves of Block

Center detail
Center detail

Finally, we are ready to sew the two halves together. You should have pressed in such a way that you can nestle the diamonds together using your pressed opposing seams.

Match up the marks with pins. I used really thin ones this time. I normally use the kind shown in the center detail photo, but switched to thinner ones as I worked on this step, because my normal pins weren’t giving me the accurate results I needed for this exacting piecing. Note that I don’t pin right in the center. I pin well where I am not going to sew and may put another vertical pin in the center temporarily. There are so many layers in the center that it doesn’t always make sense to pin there. Do what works for you.

Sew Halves Together
Sew Halves Together

Line up your piece carefully.

Hold on to your pinned halves tightly.

Sew over the center only . Start about an inch from one side of the center and stop about an inch after the center- ~2″ with the center point at the 1″ mark.

Sewing only a couple of inches makes it much easier to rip out. You might think that this will be a piece of cake, which it might be for you. It can be tricky also, because of the many layers of fabric that you are sewing through. My sewing machine did not want to go straight over that center section, which is why I had to rip the stitching out the first time.

Take the piece out of your machine, open it and see if you were able to match the center.

Once you have the center matched to your satisfaction, sew from the edge of one diamond across the entire center to the edge of the opposite diamond. Remember the mantra? Refrain from sewing into the seam allowance.

Finished and Pressed (full)
Finished and Pressed (full)

Once you have sewn the squares to the last sides of the last diamonds, pressing becomes very important. I have indicated with the circles how your pressing should look. If you need to re-press, spray the piece with water and that will make it easier.

By creating a swirl during the pressing of the center, you will reduce bulk for your later quilting step. You will thank yourself if you quilt your own quilts. Your quilter will thank you, if you have a longarmer quilt your quilts.

Finished and Pressed (detail)
Finished and Pressed (detail)



Finished LeMoyne Star
Finished LeMoyne Star

Once you have sewn the squares to the last sides of the last diamonds and pressed the piece, you should have a gorgeous block and feel very proud of yourself.
